Winding Machines
Equipment designed for the automatic winding of thermoformed refrigerator and freezer cells with aluminum or copper tubing and aluminum or polyethylene adhesive tape, with the possibility of being integrated with a thermally conductive glue distributor, and served by a Pick-Up device for loading and unloading cells.
Main Composition
Metal carpentry structure.
Expandable rotating jig for housing the cell.
Arm for applying adhesive tape and tubing.
Tubing feeding, straightening, and cutting unit.
Tubing unwinder reel and adhesive tape reel housing.
Metal perimeter guards.
Electrical and pneumatic system.
Electrical panel with PLC for management and control.
Possible Pick-Up for loading and unloading.
Possible distribution system for thermally conductive glue.

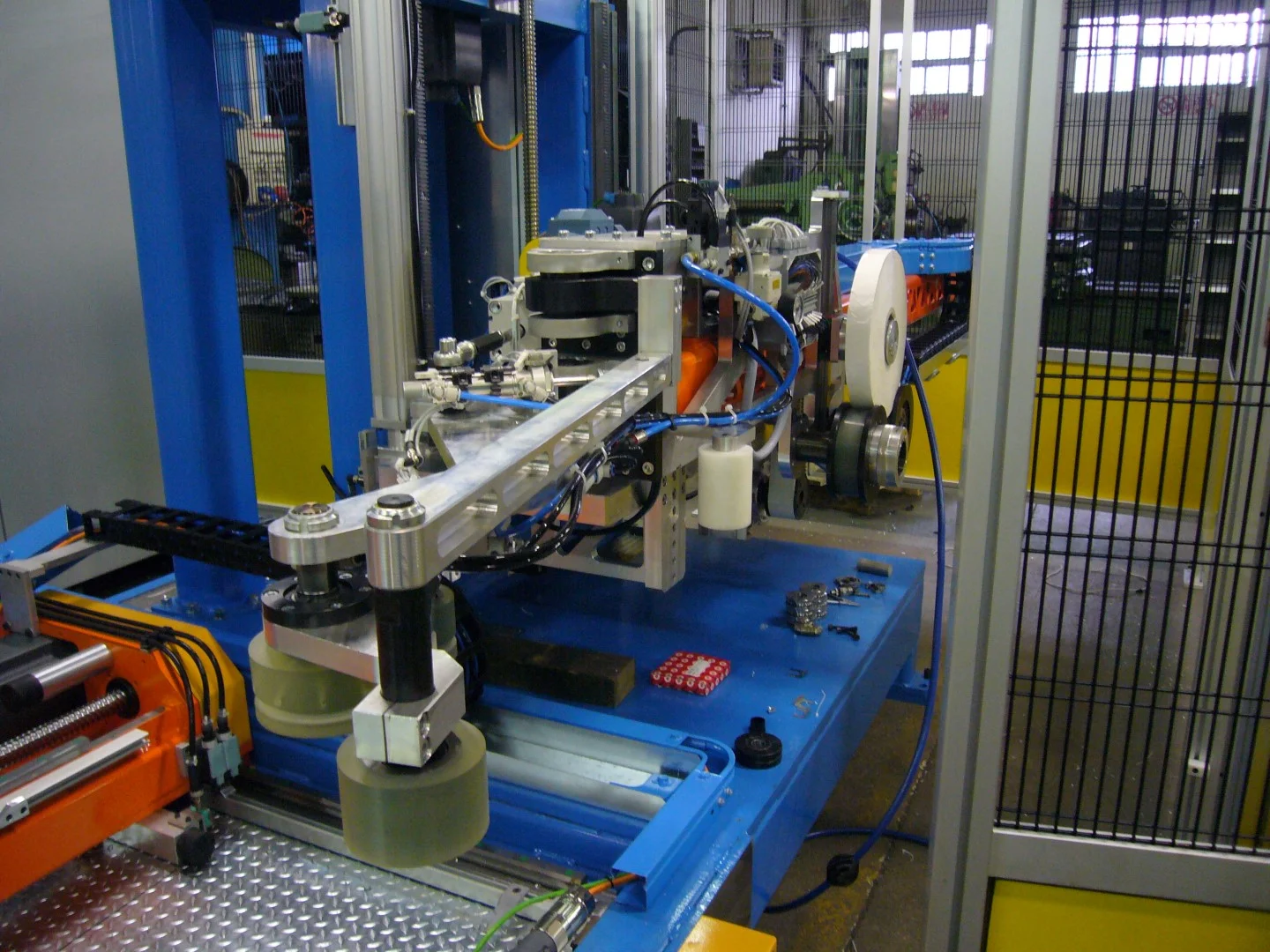

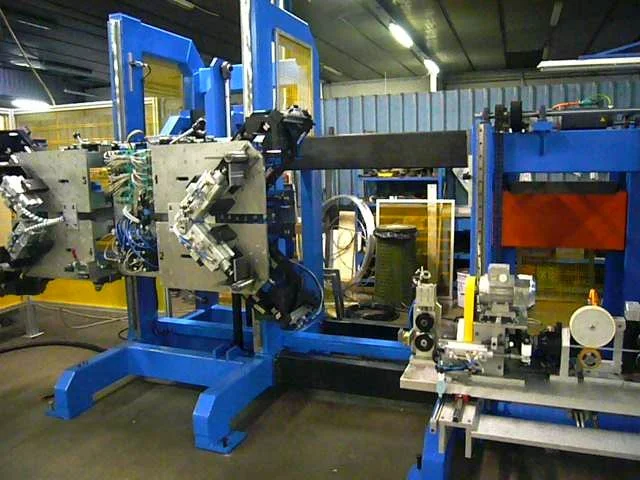

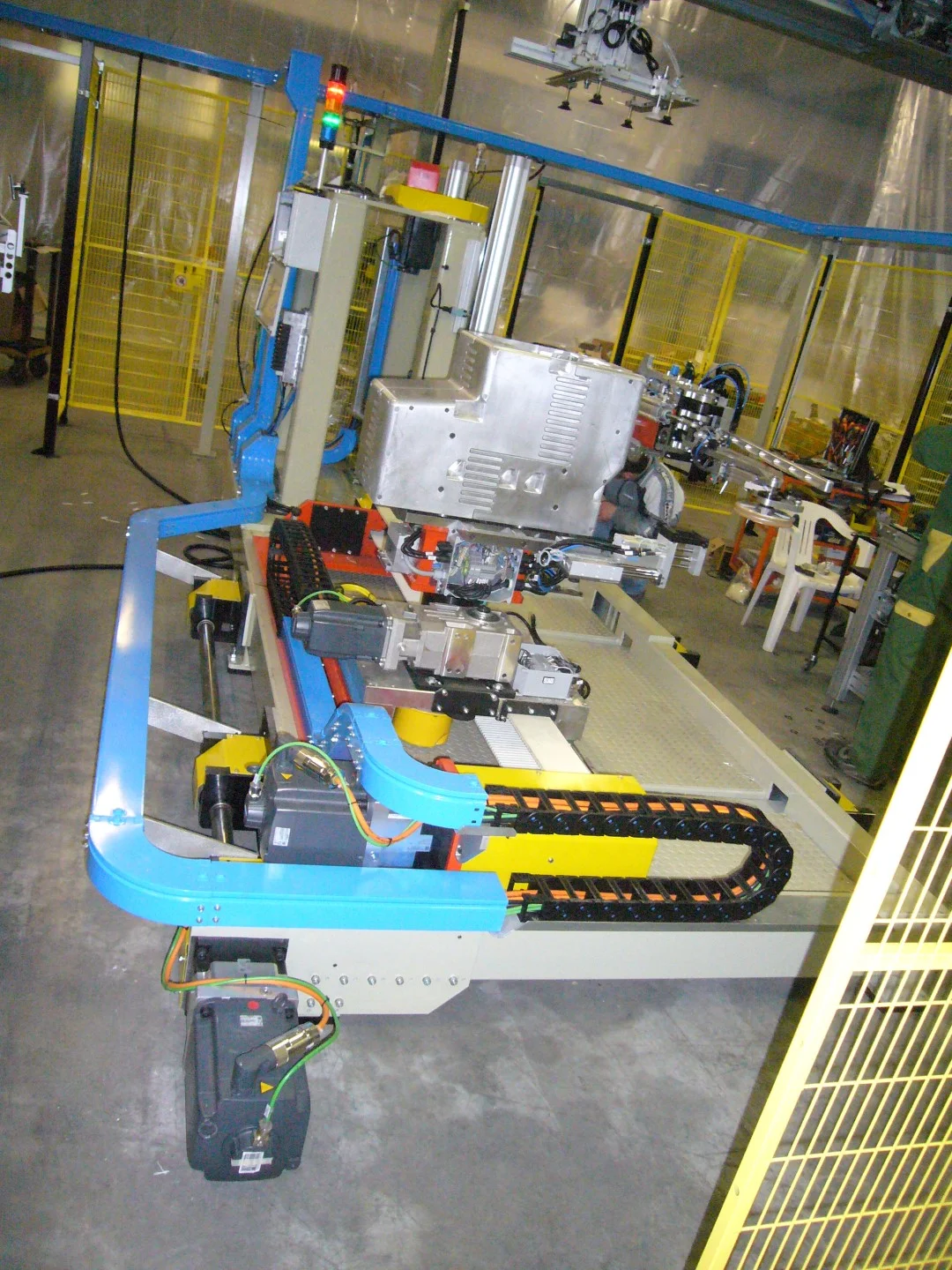

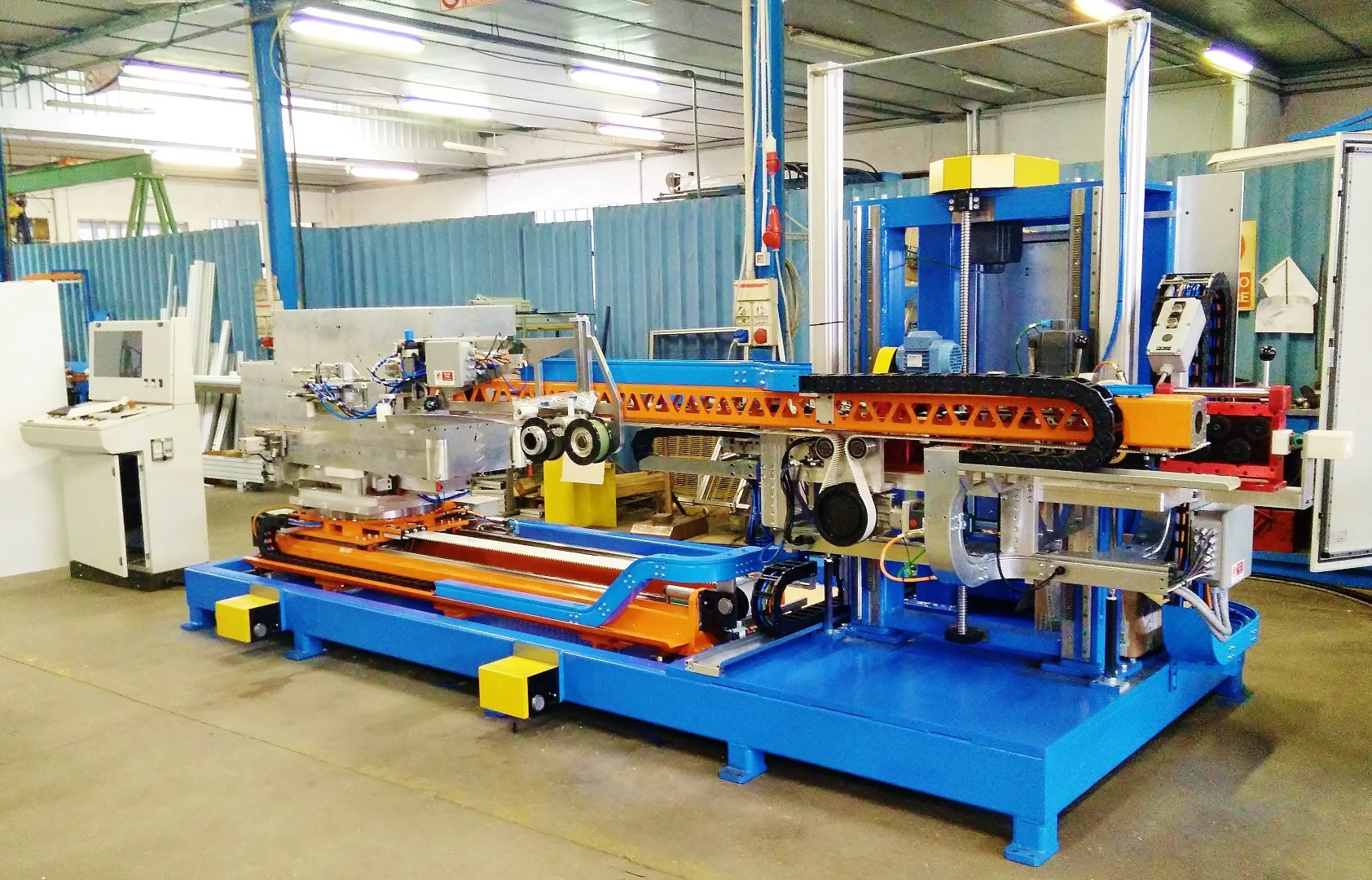

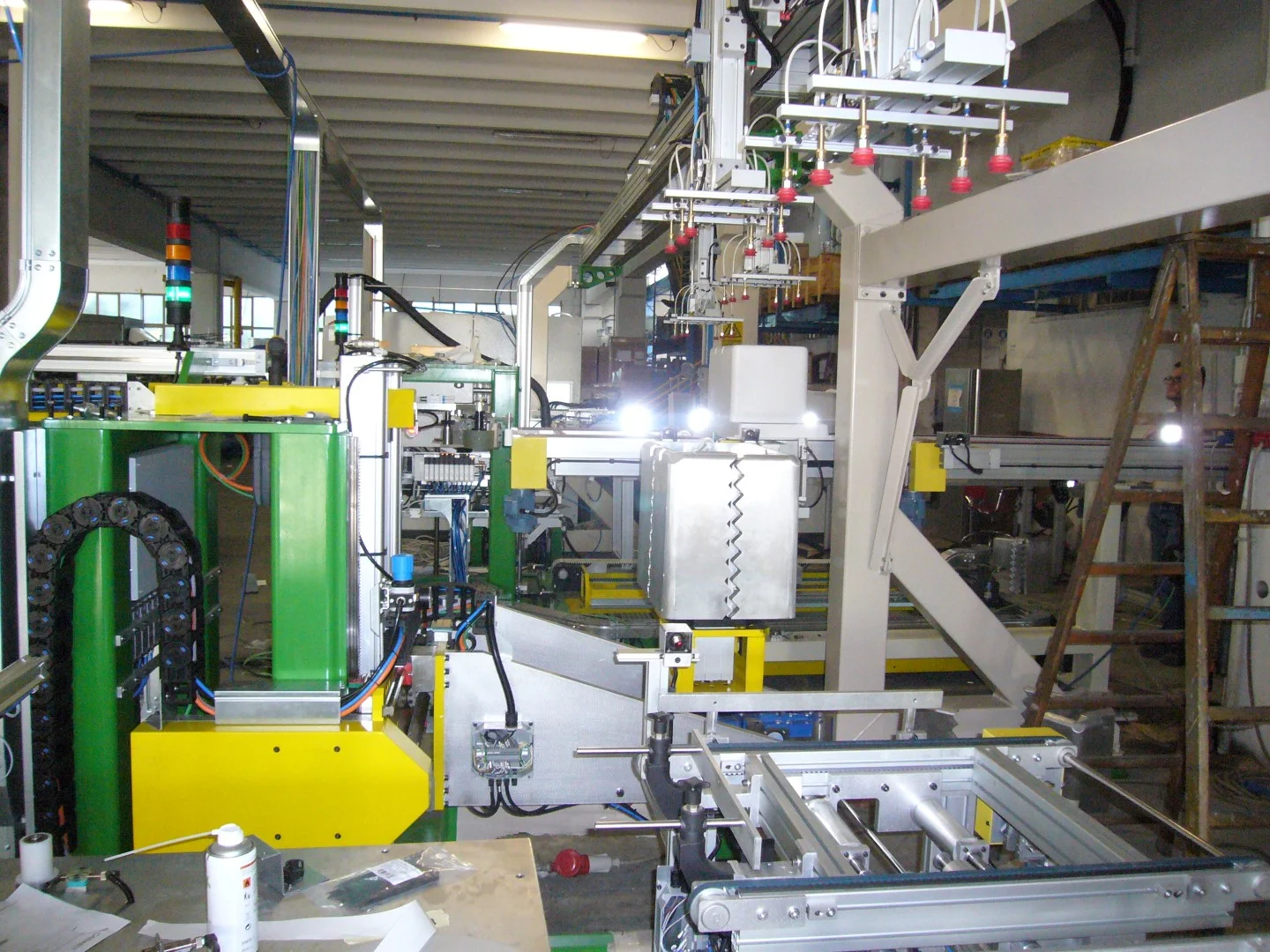

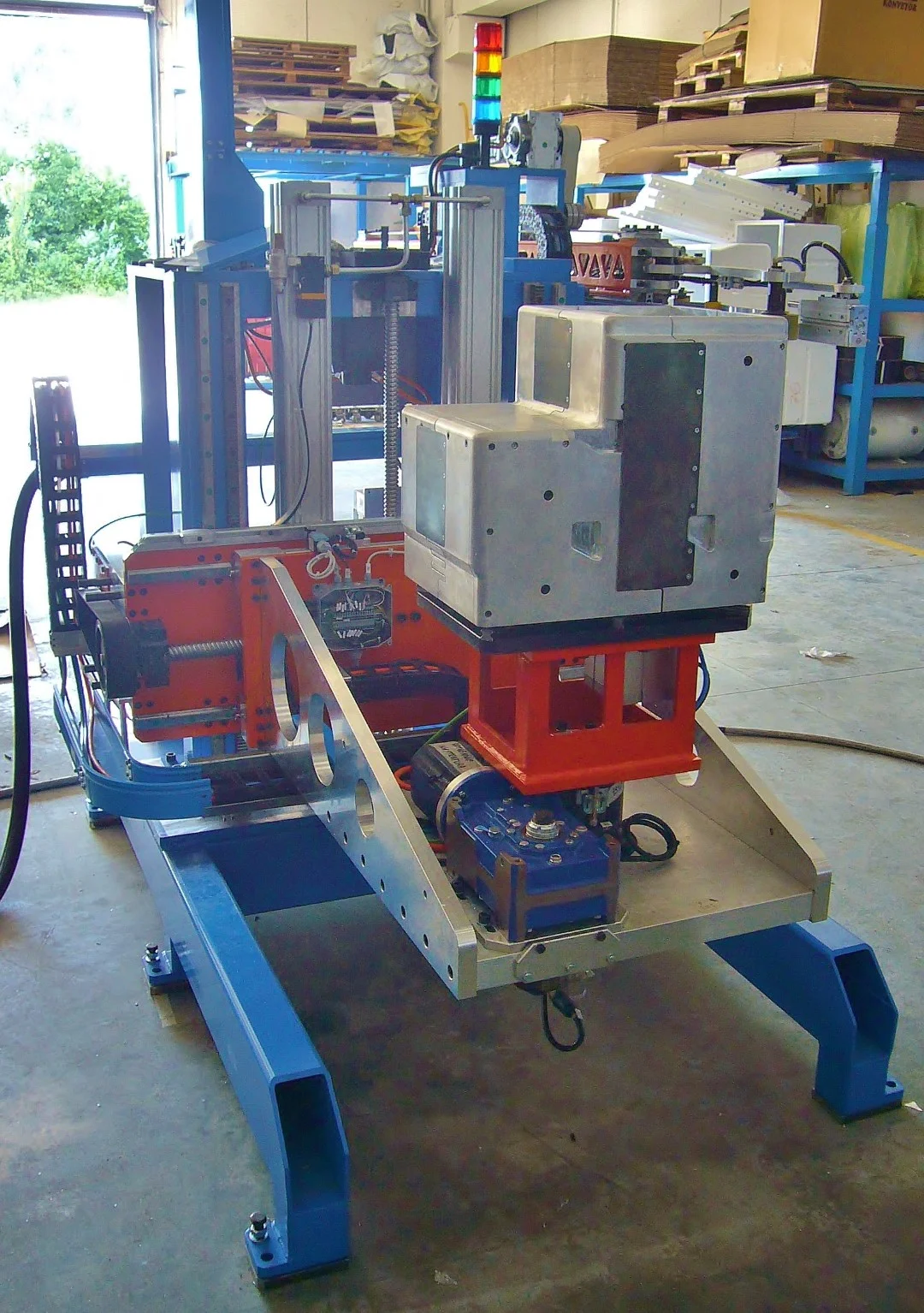

Image Gallery
